ZZY self-operated pressure regulating valve does not need additional energy. It uses the energy of the regulated medium itself as the power source, introduces the actuator to control the valve core position, changes the pressure difference and flow at both ends, and makes the pressure in front (or behind) of the valve stable. It has the advantages of sensitive action, good sealing and small fluctuation of pressure setting point. It is widely used in automatic control of gas, liquid and steam medium pressure reduction and pressure relief and pressure stabilization.
This series of products have single seat (ZZYP), sleeve (ZZYM), double seat (ZZYN) three structures; the actuator has film type, piston type two; action type with pressure relief valve after pressure regulation (type B) and pressure relief valve before pressure regulation (type K). The nominal pressure grade of the product is PN16, 40, 64; the valve body diameter range DN20-300; the leakage grade is grade II, grade IV and grade VI; the flow characteristic is fast opening; the pressure is regulated from 15-2500 kPa. It can meet user's requirements according to needs.
Characteristics of self operated pressure regulating valve
Self-powered pressure regulator can work in a place without electricity and gas without additional energy, which is convenient and energy-saving.
The pressure range is fine and intersecting, and the adjustment precision is high.
The pressure setting value can be continuously set during operation.
For pressure adjustment after valve, the ratio between front pressure and back pressure is 10:1~10:8.
Rubber diaphragm type detection, actuating mechanism has high detection accuracy and sensitive action.
The pressure balancing mechanism is adopted to make the control valve sensitive and precise.
Main parts material of self operated pressure regulating valve
節閥主要零件材料.jpg)
valve body: zg230 - 450 zg1cr18ni9ti zgocr18ni12m02ti
spool: 1cr18ni9ti 0cr18ni12m02ti
valve seat: 1cr18ni9ti 0cr18ni12m02ti
Stem: 1cr18ni9ti 0cr18ni12m02ti
Membrane cover: a3 a3Steel coated with tetrafluoroethylene stainless steel
Filler: PTFE flexible graphite
Rubber diaphragm: butadiene, ethylene propylene, fluorine, oil resistant rubber
Main technical parameters of self operated pressure regulating valve
Nominal path DN(mm) | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | ||||||||||
Rated discharge coefficient Kv | 7 | 11 | 20 | 30 | 48 | 75 | 120 | 190 | 300 | 480 | 760 | 1100 | 1750 | ||||||||||
Rated travel (mm) | 8 | 10 | 14 | 20 | 25 | 40 | 50 | 60 | 70 | ||||||||||||||
Nominal pressure PN(MPa) | 1.6 、 4.0 、 6.4 | ||||||||||||||||||||||
Pressure regulating range (kPa) | 15 ～ 50 40 ～ 80 60 ～ 100 80 ～ 140 120 ～ 180 160 ～ 220 200 ～ 260 240 ～ 300 280 ～ 350 330 ～ 400 380 ～ 450 430 ～ 500 480 ～ 560 540 ～ 620 600 ～ 700 680 ～ 800 780 ～ 900 880 ～ 1000 950 ～ 1500 1000 ～ 2500 | ||||||||||||||||||||||
Flow characteristics | Fast open | ||||||||||||||||||||||
Adjustment precision ( ％ ) | ± 5 | ||||||||||||||||||||||
Use of temperature ( ℃ ) | ≤ 350 | ||||||||||||||||||||||
Allow
Leakage | Hard seal (l/h) | Single seat: less than 10-4 valve rated capacity (grade IV); double seat, sleeve less than 5X10 -3 valve rated capacity (II level) | |||||||||||||||||||||
Soft seal (ml/h) | 0.15 | 0.30 | 0.45 | 0.60 | 0.90 | 1.7 | 4.0 | 6.75 | 11.10 | 16.0 | |||||||||||||
Pressure reduction ratio | Maximum | 10 | |||||||||||||||||||||
Minimum | 1.25 | ||||||||||||||||||||||
節閥結構圖.jpg)
Nominal path 0N | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | ||
Flange nozzle size B | 383 | 512 | 603 | 862 | 1023 | 1380 | 1800 | 2000 | 2200 | ||||||
Flange end face distance L | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | ||
Pressure
Force
Tune
Section
Fan
around kPa | 15 一 140 | H | 475 | 520 | 540 | 710 | 780 | 840 | 880 | 915 | 940 | 1000 | |||
A | 280 | 308 | |||||||||||||
280 — 500 | H | 455 | 500 | 520 | 690 | 760 | 800 | 870 | 880 | 900 | 950 | ||||
A | 230 | ||||||||||||||
120 — 300 | H | 450 | 490 | 510 | 680 | 750 | 790 | 860 | 870 | 890 | 940 | ||||
A | 176 | 194 | 280 | ||||||||||||
480 — 1000 | H | 445 | 480 | 670 | 740 | 780 | 850 | 860 | 880 | 930 | |||||
A | 176 | 194 | 280 | ||||||||||||
600 一 1500 | H | 445 | 570 | 600 | 820 | 890 | 950 | 1000 | 1100 | 1200 | |||||
A | 85 | 96 | |||||||||||||
1000 — 2500 | H | 445 | 570 | 600 | 820 | 890 | 950 | 1000 | 1100 | 1200 | |||||
A | 85 | 96 | |||||||||||||
weight kg | 26 | 37 | 42 | 72 | 90 | 114 | 130 | 144 | 180 | 200 | 250 | ||||
Guide pipe nipple thread | M16X1.5 | ||||||||||||||

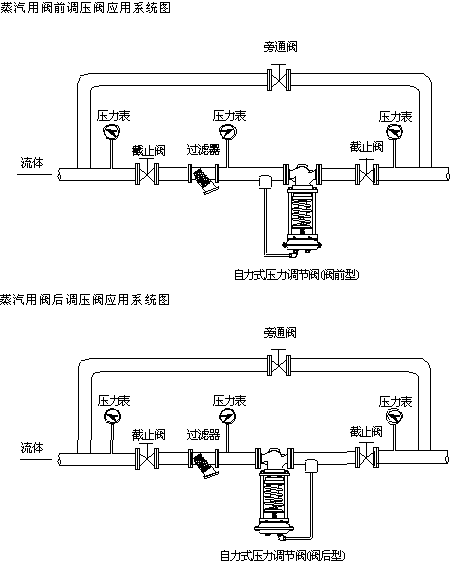

節閥安裝示意圖.gif)
